| 項目/機種名 | 2M8001C100MD | 2M 8001B100MD | 2M 8001A100PZ | 2M 5101B110MD | |
| 定額電壓 | 230V / 50Hz | 120V / 60Hz | 100V / 50Hz | 110V / 60Hz | |
| 消耗電力 | 1000W | 1000W | 800W | 600W | |

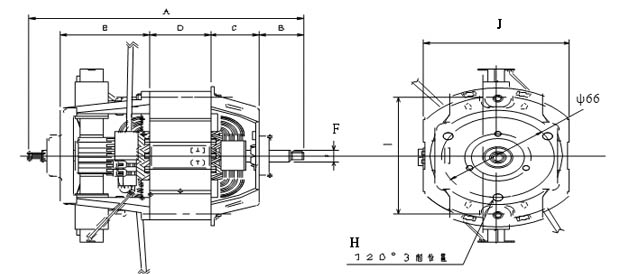

| 外 形 尺 寸 | A | 136.8 | 136.8 | 137 | 116.7 ± 0.2 |
| B | 25.2±0.4 | 25.2 ± 0.4 | 22 ± 0.6 | 22 ± 0.5 | |
| C | 23.6 | 23.6 | 23.6 | 23.6 | |
| D | 30 ± 0.5 | 30 ± 0.5 | 30 ± 0.5 | 25 ± 0.5 | |
| E | 43.5 | 43.5 | 43.5 | 36.1 | |
| F | ψ8 | ψ8 | ψ8 | ψ8 | |
| G | 120 ± 1 | 120 ± 1 | 120 ± 1 | 105 | |
| H | 3-M5×0.8 | 3-M5×0.8 | 3-M5×0.8 | 3-M5×0.8 | |
| I | 80 ± 0.1 | 80 ± 0.1 | 80 ± 0.1 | 80 ± 0.1 | |
| J | 72 | 72 | 72 | 72 | |
